Fabric Universal Tensile Testing Machine CRE Extension Elongation Rate 10KN

Name: Fabric Universal Tensile Testing Machine CRE Extension Elongation Rate 10KN
Brand: POOTAB
Price: 1 USD

Best Fabric Universal Tensile Testing Machine CRE Extension Elongation Rate 10KN wholesale

Brand Name : POOTAB

Model Number : PT-1166

Certification : CE,SGS,ISO

Place of Origin : Dongguan,Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200 sets per month

Delivery Time : 7 working days after order confirmed

Packaging Details : the machine is surrounded by several layers of stretch film, added with foam, and then packed into a wooden box

Load Cell Capacity Option : 20N,50N,100N,500N,1000N,2000N,5000N,10000N,20000N (one choice)

Test Item : tensile, compression, stripping, flex, tear,puncture

Test Speed : 0.05～1000mm/min

Test Travel : 1000mm, not including grip

Motor : Panasonic Servo AC Motor

Package Size : about 95×68×180cm(W×D×H)

Package Weight : about 190kg

Contact Now

Fabric Universal Tensile Testing Machine CRE Extension Elongation Rate 10KN

Applicable Material : metal materials, wires and cables, steel bar, rubber and plastics, paper, printing packaging products, adhesive tape, luggage and handbags, textile,fibers, yarn, wood, thin film, bottle, tube, pipe, finished products and semi-finished products,hardware....

Test Contents: Tensile strength, elongation, tensile strength, tensile strength, pressure, compression resistance, top pressure, three point bending resistance, four point bending, puncture, tearing, bursting strength, peeling, adhesion, shearing,bonding force...

This tensile testing machine, meet standards ASTM D903, ASTM D3579 ,ASTM D897....and many other standards.

UTM Specifications:

Model	PT-1166 Fabric Universal Tensile Testing Machine CRE Extension Elongation Rate 10KN
Load Cell Capacity	20N,50N,100N,500N,1000N,2000N,5000N,10000N,20000N (one choice)
Software	Windows professional software, (suitable WIN 7, WIN 8, WIN 9, WIN 10, i3,i5,i6,i7,i8,)
Force Accuracy	±0.5%
Force Resolution	1/500,000
Measurement Range	0.5~100%F.S
Deformation Display Accuracy	±0.5%
Testing Speed	0.05～1000mm/min
Testing Travel	Max 1000mm,
Effective Test Space	left right 400mm
Unit Switch	gf,kgf,Mpa,Pa, lb, and other units
Stop Methods	Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special Functions	Tensile holding, compress holding, tensile fatigue , compression fatigue ( software need updated)
Standard Configurations	Standard fixture 1 pair, software and data line 1 sets, 1 sets of equipment power supply, operating instructions user manual, 1 product certification , 1 product warranty card
Purchase Configurations	DELL computer , printer , and test grips as customer's request
Machine Size	About 76×46×160cm(W×D×H)
Machine Weight	About 160kg
Motor	Panasonic Servo AC Motor
Power Supply	1PH,AC220V,50 or 60Hz,or as client's request

Tensile Machine Pic :

Connect Ports :

Fabric Universal Tensile Testing Machine CRE Extension Elongation Rate 10KN

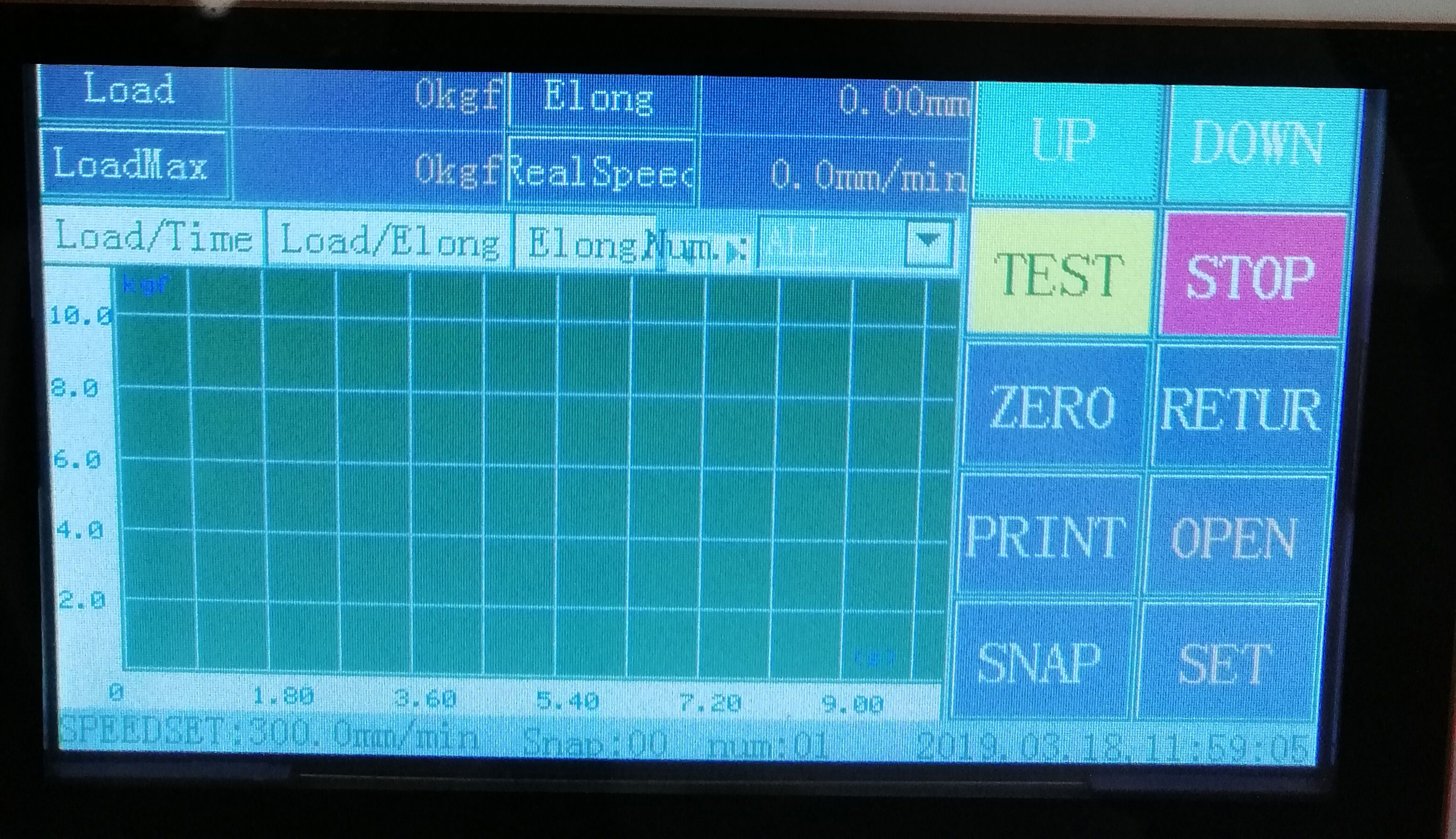

Touch screen Inferface for tensile tester:

Fabric Universal Tensile Testing Machine CRE Extension Elongation Rate 10KN

PC Software Interface :
